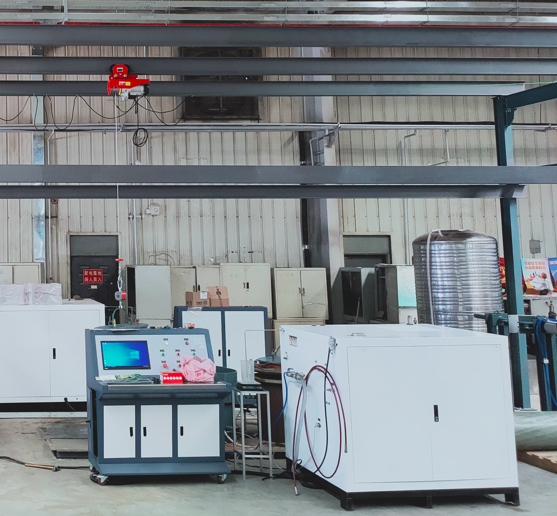

I. Application Range:
Jinan SUPER has developed this equipment in strict accordance with the detailed requirements for gas cylinder hydrostatic testing methods, testing devices, and operating procedures specified in the following standards: National Standard GB/T9251-1997 "Method for Hydrostatic Test of Gas Cylinders," GB/T13004-2016 "Periodic Inspection and Evaluation of Seamless Steel Gas Cylinders," GB/T9251-2010 "Method for Hydrostatic Test of Gas Cylinders," and CGA C-1 "Method for Hydrostatic Testing of Compressed Gas Cylinders." Compared to traditional manual water jacket test devices, this computer-controlled water jacket test device offers the advantages of real-time data acquisition and high precision. It enables real-time data display, as well as functions for saving and querying data after testing.
Vehicle natural gas cylinders are divided into seamless steel cylinders and wrapped cylinders (common manufacturers include Beijing Tianhai, Chongqing Yifeng, etc.). The equipment is primarily used to measure technical parameters such as total expansion volume, residual expansion volume, and expansion rate under pressure resistance. Data tracking and retrieval are convenient and efficient.
II. Software Control Interface
III. Equipment Features
-
The external test of the gas cylinder adopts a pneumatic-liquid method for pressurization, with the wetted parts made of stainless steel.
-
Multiple water jackets of different models are available to meet the requirements of various test specifications.
-
A high-precision calibration pressure gauge is used to calibrate the test pressure gauge.
-
The software features a user-friendly interface that eliminates human errors and records the corresponding test pressure and expansion volume.
-
Upon completion of the hydrostatic test, the computer acquires the initial water level, high water level, high pressure, and final water level. The total expansion value, residual expansion value, and residual expansion rate of the gas cylinder are then calculated through the host computer.
-
An electronic weighing device replaces the traditional burette, and an electronic digital sensor accurately reads pressure and expansion values.
IV. Technical Parameters
Product Name |
Cylinder Hydraulic Pressure Testing Machine |
Model |
SUP_QP_M80 |
Basic Principle |
Pressurization is performed by Jinan SUPER Pneumatic Booster Pump SUP_M_80. During pressurization, the cylinder has a fixed expansion amount, the electronic balance records the expansion value, and the computer software simultaneously records the pressure curve and displacement curve. After reaching a certain pressure, the pressurization stops automatically, entering the pressure holding stage, then the pressure is relieved, the electronic balance weighs the residual water volume, and finally the residual deformation rate is calculated. |
Performance Parameters |
Test Pressure |
0~50MPa |
Pressure Control Accuracy |
+2% of the upper limit and -1% of the lower limit of the test pressure value |
Pressure Value Resolution |
0.1MPa |
Weighing Accuracy |
0.1g |
Test Medium |
water |
Operation Mode |
Computer Control |
Operation Mode |
Manual Control，Computer Control |
Number of test samples |
Equipped with two test water jackets and one set of pressure boosting and control device. |
Temperature Display |
Average deviation of 0.1℃ |
Translation (Fitted for industrial/testing context) |
Manual or Automatic Clamping |
Structure and Composition |
Booster System，Pressure Control System，Weighing System，Computer Control System，Water Jacket |
Scope of application |
Wound Cylinder，Steel Cylinder |
qipingshiyanji-q
The breathing cylinder testing device is mainly used for testing breathing cylinders, including equipment such as breathing cylinder hydrostatic testing, cylinder drying, cylinder cleaning, cylinder valve installation and removal, cylinder water drainage, and cylinder water filling.
The breathing cylinder testing device is mainly used for testing breathing cylinders, including equipment such as breathing cylinder hydrostatic testing, cylinder drying, cylinder cleaning, cylinder valve installation and removal, cylinder water drainage, and cylinder water filling.

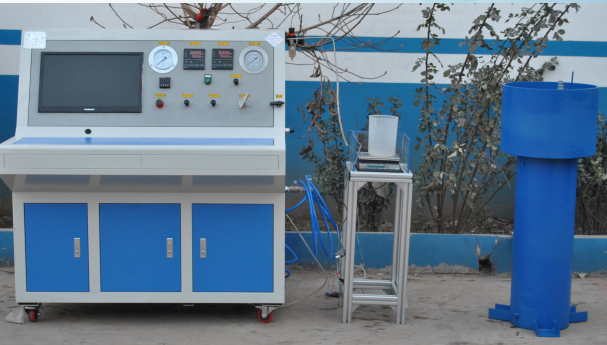

Controlled Water Jacket Hydrostatic Test Machine for Gas Cylinders
