Universal Burst Test Machine
| |
 |
Software |
|
|
|
 |
High-Pressure Valve |
|
Burst Test Machine Model Selection
| 设备型号 |
压力范围MPa |
测试试验介质 |
压力控制方式 |
| SUP_BPXT_5 |
5 |
清水、液压油、气体 |
手动、自动 |
| SUP_BPXT_10 |
10 |
清水、液压油、气体 |
手动、自动 |
| SUP_BPXT_25 |
25 |
清水、液压油、气体 |
手动、自动 |
| SUP_BPXT_40 |
40 |
清水、液压油、气体 |
手动、自动 |
| SUP_BPXT_60 |
60 |
清水、液压油、气体 |
手动、自动 |
| SUP_BPXT_100 |
100 |
清水、液压油 |
手动、自动 |
| SUP_BPXT_150 |
150 |
清水、液压油 |
手动、自动 |
| SUP_BPXT_200 |
200 |
清水、液压油 |
手动、自动 |
| SUP_BPXT_250 |
250 |
清水、液压油 |
手动、自动 |
| SUP_BPXT_300 |
300 |
清水、液压油 |
手动、自动 |
| SUP_BPXT_400 |
400 |
液压油 |
手自动 |
| SUP_BPXT_600 |
600 |
液压油 |
手自动 |
| SUP_BPXT_800 |
800 |
液压油 |
手自动 |
Special-Purpose Burst Test Machine
| |
 |
Manually Controlled Hose Burst Test Machine |
|
|
|
 |

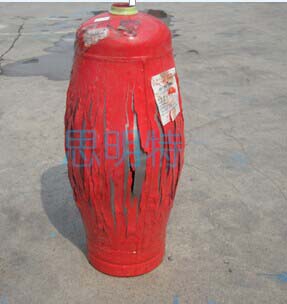

Pressure Vessel and Gas Cylinder Burst Test Machine |
|
| |
 |
Burst Test Equipment for Intercoolers, Radiators, and Condensers |
|
|
 |
Pressure Resistance and Burst Test Machine for Plastic Pipes and Tubes |
|
 |
| Burst Test Machine for Flat Aluminum Tubes |
|
| |
|
|
 |

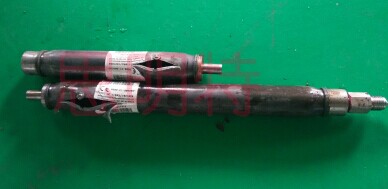

Airbag Inflator Burst Pressure Test Machine |
|
|
| |
|
 |
Urea Tube Burst Test Machine |
|
 |
Rubber Hose Burst Test |
|
| |
|
|
 |
Water Tank Burst Pressure Test Machine |
|
| |
|
 |
Aluminum Cylinder Burst Tester
|
|
 |
High-Temperature Burst Test Machine for Fluoroplastic Tubes |
|
| |
 |
Servo-Controlled Burst Test Machine |
|
|
|
Key Considerations for Selecting a Burst Test Machine (Especially with Known Testing Standards)
Technical Specifications & Considerations for Burst Test Machine Selection
1. Test Medium
Specify the required medium (e.g., water, oil, gas, or other fluids).
2. Test Pressure Range
Define the maximum and minimum working pressure (in MPa).
3. Volume of Test Specimen
Provide the maximum volume (in liters) of the component to be tested.
4. Temperature of Test Medium
Indicate any requirements for the temperature of the test fluid and/or ambient temperature during testing.
5. Pressure Ramp Rate Control
Specify if a controlled pressure increase rate is required and whether computer-controlled precision is necessary.
6. Data Recording & Reporting
The system shall record the entire test process and capture the burst pressure value.
Options include a digital display or a computer-based data acquisition system.
The computer system shall generate test reports and save detailed process and result data.
7. Additional Monitoring & Data Acquisition
Video Recording: State if a camera is required to monitor the entire test process.
Dimensional Change: Specify if measurements such as volumetric expansion, diameter change, or length change of the specimen are needed.
Strain Measurement: Indicate if a strain gauge or other sensors are required to collect strain or additional parameters.
8. Other Requirements
Please list any other specific requirements or special conditions.
压力单位的换算关系：1MPa=10bar=1000KPa≈10公斤=145psi
Relevant Technical Documentation
Technical Requirements for the Hydraulic Bearing Separator Burst Test Machine
Hydraulic Test Requirements for Metal Pipes
Destructive Test Methods and Requirements for Metal Pipes
Technical Data
|
