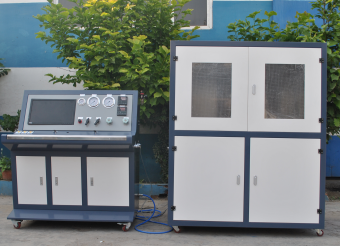

Flow & Pressure Loss with Pressure Cycling Testing Machine for Reactor Cooling Systems |
|
|
|
 |
Filter Housing Pulse Vibration Testing Machine |
|
Pulse Testing Machine Model Selection
| 型号 |
试验介质 |
试验压力 |
频率 |
介质温度 |
环境温度 |
备注 |
| SUP_GMCST |
清水 |
0-70MPa |
0.1-5HZ |
常温-100℃ |
-40-150℃ |
Specific test parameters such as pulse pressure and temperature can be selected according to requirements. For more customized needs, please call for consultation. |
| SUP_GMCSY |
液压油 |
0-70MPa |
0.1-5HZ |
常温-150℃ |
-40-150℃ |
Specific pulse testing parameters such as pressure and temperature can be customized to your requirements. For more demanding or customized needs, please contact us by phone for further consultation. |
| SUP_GMCSH |
水乙二醇混合液 |
0-70MPa |
0.1-5HZ |
常温-150℃ |
-40-150℃ |
Specific pulse testing parameters such as pressure and temperature can be customized to your requirements. For more demanding or customized needs, please contact us by phone for further consultation. |
| SUP_GMCSQ |
气体 |
0-10MPa |
0.1-1HZ |
常温-150℃ |
-40-150℃ |
Specific pulse testing parameters such as pressure and temperature can be customized to your requirements. For more demanding or customized needs, please contact us by phone for further consultation. |
The application scope of the pulse pressure cycling testing machines includes: hoses, flexible tubes, gas cylinders, radiators, intake manifolds, intercoolers, fuel tanks, pressure sensors, water purifiers, pipes, faucets, valves, pressure gauges, quick couplings, pipe fittings, oil coolers, water tanks, fuel tanks, brake lines, FRP vessels, etc.
When selecting a pulse testing machine, the following information is required:
-
Relevant test standards or test pressure requirements (high pressure/low pressure).
-
Test frequency (number of cycles required from pressurization to depressurization).
-
Volume of the test specimen (internal volume in liters).
-
Any requirements for ambient temperature during testing.
-
Requirements for the test medium and its temperature.
-
Control method (currently available options include computer control, touchscreen control, and instrument control; the first two are more common for pulse testing).
-
Any other specific requirements.
| |
 |

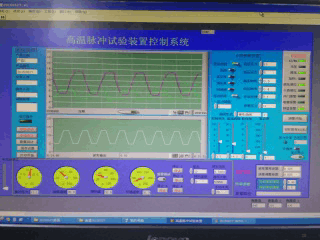

Software Graph |
|
